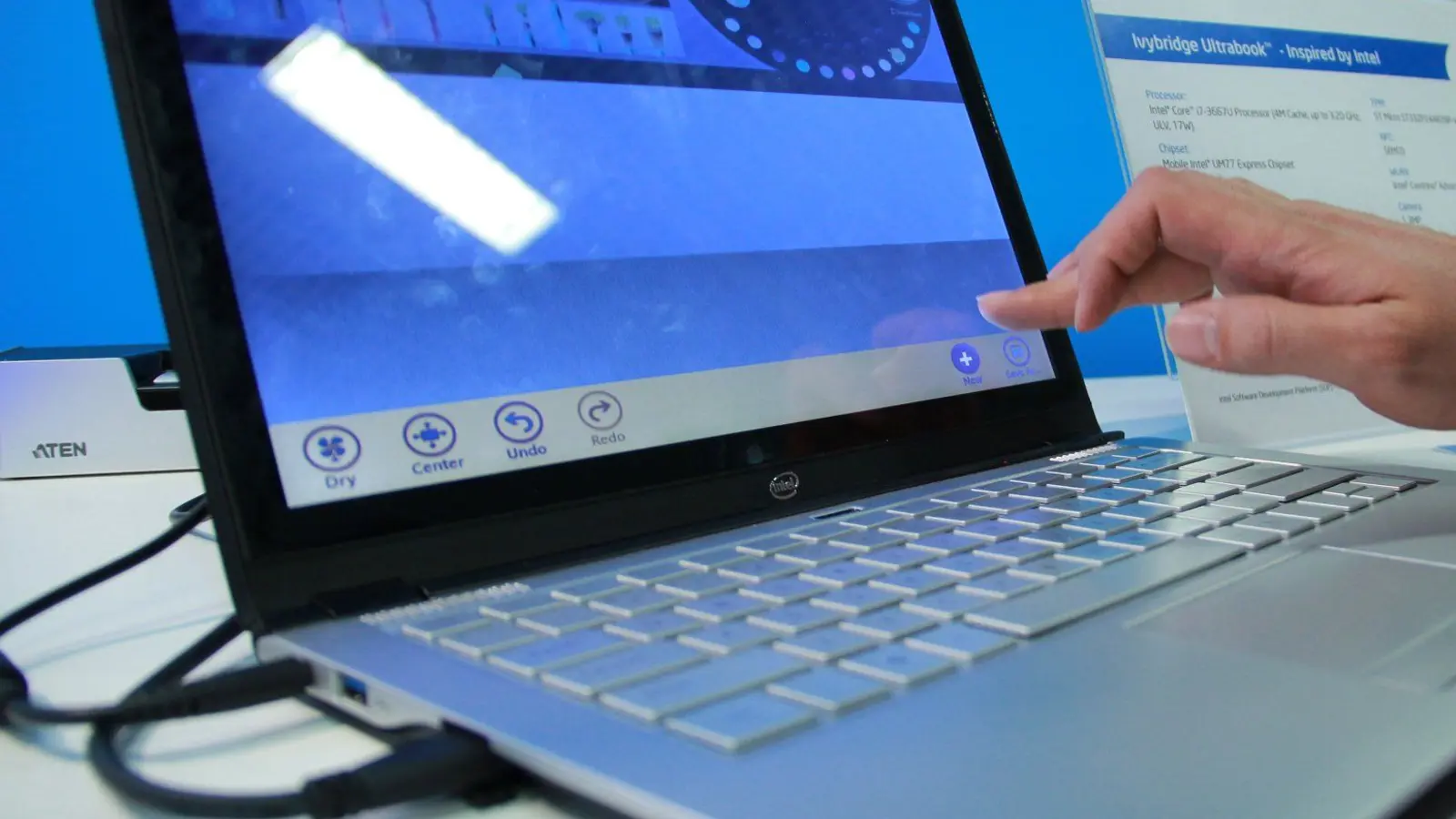

A transparent electrode grid detects tiny electrical changes and calculates the coordinates of one or more fingers
The short answer
The display creates the picture, but a separate transparent sensor layer reads touch. It converts an invisible electrical disturbance into coordinates fast enough that dragging an icon feels continuous.
Capacitance stores electrical charge
Two conductive regions separated by an insulator form a capacitor. Geometry, materials and nearby conductive objects determine how much charge is stored for a given voltage.
Transparent electrodes form a sensing grid
Materials such as indium tin oxide are patterned into rows and columns while transmitting visible light. Fine metal meshes and other conductors can serve similar roles.
The controller scans the grid repeatedly
Drive signals are applied in a timed sequence and receiving electrodes measure coupling. The resulting baseline map describes the untouched screen.
A finger alters the local electric field
The conductive human body couples electrically to the sensor. Near a touch, measured self-capacitance or mutual capacitance changes relative to the baseline.
Algorithms estimate coordinates
The controller compares neighbouring sensor values, removes noise and calculates the centre and shape of each touch cluster. Interpolation provides resolution finer than electrode spacing.
Multi-touch separates several clusters
Mutual-capacitance grids can identify changes at many row-column intersections. Software tracks those clusters across frames to recognize pinches, rotations and gestures.
Glass and cases affect sensitivity
The cover lens is a dielectric layer between finger and electrodes. Greater thickness, air gaps, moisture and some screen protectors change coupling and signal strength.
Gloves may block ordinary capacitive touch
Dry insulating fabric prevents effective coupling. Conductive fingertips, active styluses or specially tuned high-sensitivity modes create a detectable electrical path.
Resistive screens use physical contact
Two flexible conductive layers are normally separated. Pressure brings them together, and voltage measurements along the layers reveal the contact location, allowing use with almost any pointed object.
Common misconceptions
A touchscreen does not normally see a fingerprint image or sense body heat to locate a tap. Capacitive systems measure electrical coupling, while resistive systems measure contact between layers. Pressing harder on an ordinary capacitive phone does not inherently improve location, though separate sensors or software may estimate force.
How scientists know
Engineers map electric fields, measure femtofarad-scale capacitance changes, inject radio-frequency noise and test coordinate accuracy with robotic fingers. Environmental chambers vary temperature and humidity while software tests latency, palm rejection, water rejection and multi-touch tracking.
Why does a bare finger work?
The body is conductive enough to alter the sensor’s electric field and capacitance.
Why do ordinary gloves fail?
Insulating fabric weakens electrical coupling between finger and sensor.
Can water cause false touches?
Yes. Conductive droplets can distort the field, though modern controllers use rejection algorithms.
How does multi-touch work?
A grid measures many intersections so separate signal clusters can be tracked simultaneously.
Does the display itself sense touch?
Usually a transparent touch sensor is integrated above or within the display stack.
Key takeaways
- Projected-capacitive screens use transparent electrode grids.
- A finger changes local electrical coupling.
- Controllers convert a signal pattern into coordinates and gestures.
- Resistive screens instead detect pressure-driven contact between layers.
Continue exploring
- How facial recognition works
- How transistors work
Calibration rejects noise
Displays, chargers, moisture and radio circuits can introduce interference. Filtering, baseline tracking and thresholds separate intentional touches from slow drift and electrical noise.
Why does a stylus work?
A passive stylus provides a conductive tip; an active stylus also transmits signals for precision and pressure data.
Can a screen sense a finger before contact?
Some controllers detect weak proximity changes, though accuracy is lower than direct touch.
Why do cracked screens behave unpredictably?
Damage can break electrodes, alter insulation or create false electrical paths.
