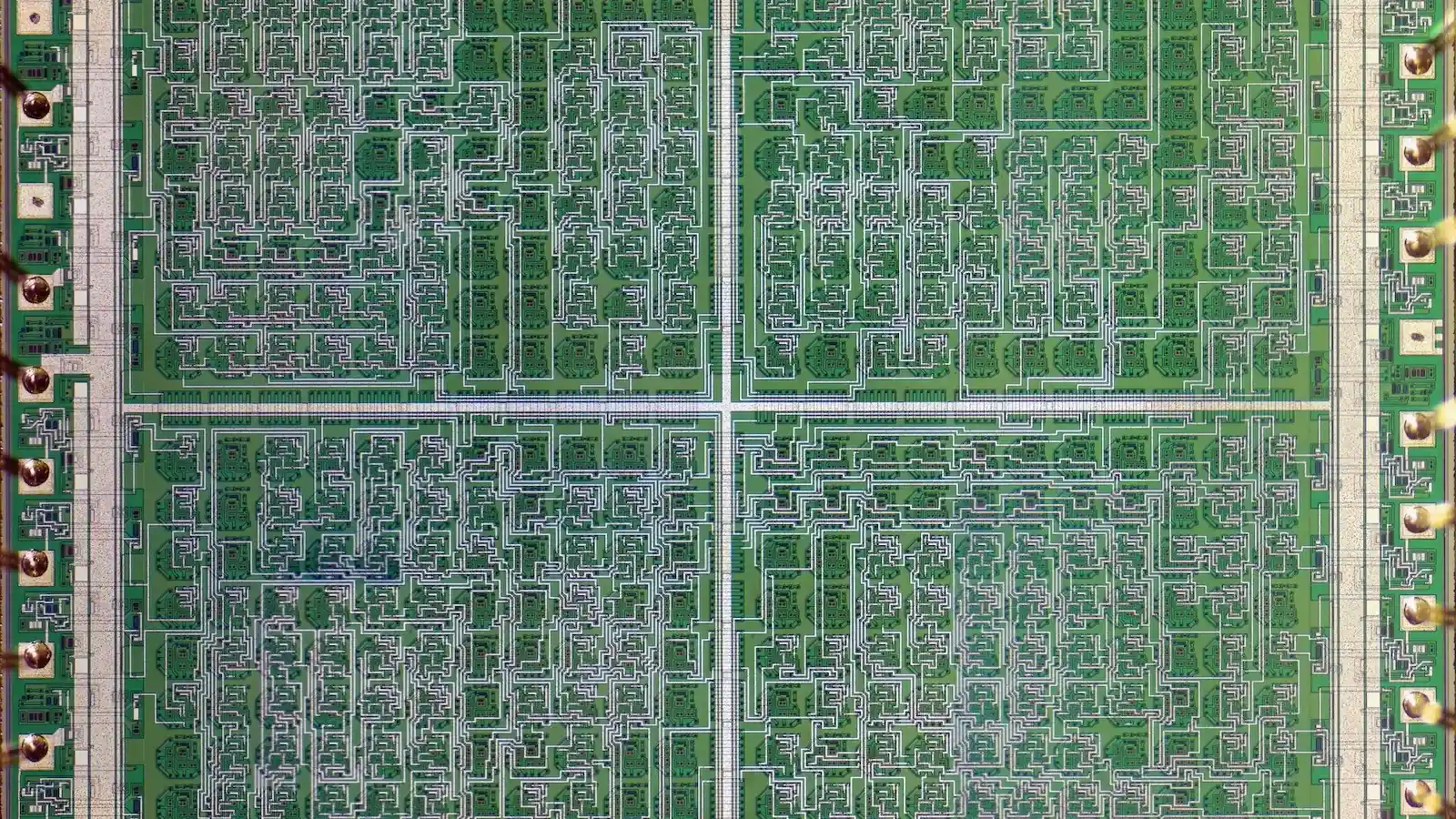

How Transistors Switch and Amplify Electronic Signals

A transistor controls current in a circuit. The same broad ability supports digital switching and signal amplification, with the extra output energy supplied by the circuit’s power source.

A transistor lets one electrical signal control another current. That ability makes it useful both as a switch in digital electronics and as part of an amplifier for a changing analogue signal. The two uses involve different operating conditions, not two unrelated inventions.

The device controls energy supplied by a circuit. It does not create extra energy from an input signal alone.

A semiconductor can be made controllable

Semiconductors such as silicon can be engineered so that their electrical behaviour responds to fields and carefully introduced impurities. These properties allow devices with terminals that control charge movement.

There are several transistor families. A bipolar junction transistor and a field-effect transistor do not operate identically, so an explanation of one should not be presented as the detailed mechanism of every transistor ever made.

In a MOSFET, a gate controls a channel

A metal–oxide–semiconductor field-effect transistor has source and drain regions connected through a controllable channel. Voltage at the gate changes the electric field and the channel's ability to conduct. An insulating layer separates the gate from the channel.

Intel's explanation uses this source–channel–drain arrangement to describe modern logic devices. The gate does not need a mechanical contact that physically opens or closes. The controlled response occurs within the semiconductor structure.

Switching creates useful voltage states

Digital circuits arrange transistors so that input voltages lead to distinguishable output levels. Combining devices produces logic functions, which can be assembled into arithmetic, memory and control circuits.

A logic “one” is not one electron, and a logic “zero” does not require every part of the chip to contain no current. They are circuit-defined signal states with tolerances. Real devices also have leakage, switching delay and capacitance, rather than behaving like perfect abstract switches.

Amplification uses an operating point

An amplifier biases a transistor into a region where a small input change produces a useful change in output current or voltage. Other circuit components convert and control that response. The output's additional power comes from the supply.

If the input pushes the device beyond the intended range, the output can distort or clip. Analog Devices' treatment of single-transistor amplifier stages shows why bias and surrounding components matter as much as the simplified symbol on a schematic.

The device and the circuit work together

The transistor's behaviour is only part of a working electronic system. Its connections, load, supply and operating conditions determine whether it switches reliably or amplifies a signal cleanly.

The first point-contact transistor demonstrated in 1947 differed physically from today's dense integrated devices. The continuing principle is electrical control: a small semiconductor structure can regulate a signal in a way that becomes useful when many such structures are connected into a circuit.
